Публикуется в электронном виде на правах учебного курсового проекта.

The ear rebirth function equipment

The main work principle of this equipment is the nervous axes stimulation that has place into the ear tunnel by an intruding the soft plastic spiral with the "a chess ordered" electrodes in this.

The smallest impulse voltage has stimulate a nervous axes in the tunnel and a human that lost an ear can to ear again.

What is it?

This is an inductive circuit that is made from the thin copper twin (a diameter about 0.01...0.005 mm) that likes to a "tablet" with the external size no more than a little coin (a diameter about 10...15 mm) in the white plastic cover. This tablet must be not deeply implanted under the skin between a headbone and an ear and the thin white cable will be intrude through a headbone to an ear tunnel inside. The soft black plastic spiral must be placed by an intruding in the deeper ear spiral. The many electrodes on the black plastic spiral has increase a probability of an effective stimulation the ear nervous axes by the many electrical contacts between a metal and a skin.



The main part of the ear rebirth system that must be implanted in an ear tunnel and under the headbone skin near an ear.



The induction circuit (the photo x8.5)



The black plastic spiral with the electrodes that must be placed in the ear tunnel.



The standard ear amplifier: an ordinal headphones has replaced by the inductive circuit (L1). The inductive circuit made a magnetic field that can be recieve by the inductive circuit in the implanted "tablet" because of a magnetic field easy comes through a skin.

We can use as an equipment the simple FM-reciever or the MP3-player for the nervous axes stimulating as this makes with a microphone in the ordinal ear rebirth function system scheme :)

There is a good possibilities is a probably opened for the other special services and for a policies and for a detective agencies: the external design of a detective is not present the any gadgets: a "walki-talki" or a mobile phone or a headphone garniture or a hidden microphones. The detective may has the implanted reciever under him skin in an ear tunnel for an example. Probably this or like to this gadgets already has used by an criminal.

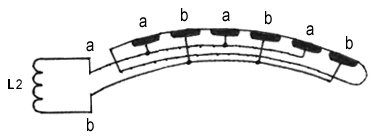

As shown on this sketch: the inductive circuit L2 recieve a signal from L1 then transmit to the electrodes for both groups: "a" and "b" on the soft spiral that placed in an ear tunnel. The soft black spiral is a shown in the "open" form.

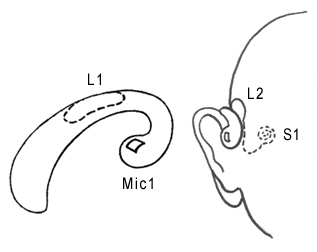

The spiral S1 is a placed in an ear tunnel.

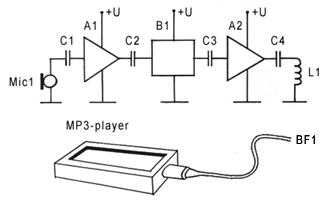

The ear rebirth function system scheme: Mic1 - the microphone, A1 - the microphone amplifier, B1 - the sound processor, A2 - the power amplifier, L1 - the inductive circuit.
